Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed
  • Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed
  • Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed
  • Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed
  • Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed
  • Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed

Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed

Product Details:
Place of Origin: CHINA
Brand Name: SHENGLI
Certification: CE
Document: Tresor Dore Chocolate Packi...ne.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
SHENGLI
Certification:
CE
Document:
Tresor Dore Chocolate Packi...ne.pdf
Product Name:
Automatic Wrapping Machine For Chocolate With 200-300 Pcs/min Speed Aluminum Foil Packaging
Application:
Food,chocolate
Driven Type:
Electric
Key Selling Points:
High-Accuracy
Video Outgoing-inspection:
Provided
Control System:
PLC+Servo+Touch Screen
Packing Material:
Aluminum Foil
Packing Speed:
200-300 Pcs/min
Highlight:

High Light

Highlight:

Multifunction Chocolate Egg Wrapping Machine

,

Chocolate Egg Wrapping Machine 200pcs/Min

,

200pcs/Min Chocolate Foil Wrapping Machine

Trading Information
Minimum Order Quantity:
One Set
Price:
USD51000.0-USD60000.0
Packaging Details:
Export wooden cases
Delivery Time:
45-60 Days
Payment Terms:
T/T,L/C
Supply Ability:
20 Sets/Month
Product Description

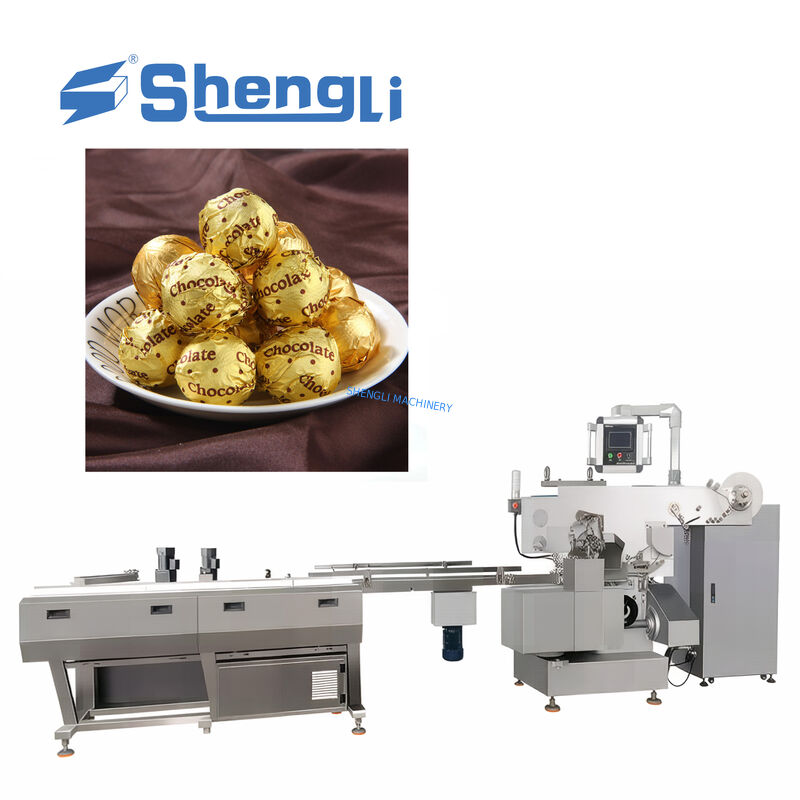

Automatic Wrapping Machine for Chocolate with 200-300 pcs/min Speed Aluminum Foil Packaging

Complete automated packaging system consisting of one SL-SBJS260 Tresor Dore Packing Machine and one SL-SBZL300J Arranging and Feeding Machine.

Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 0
Machine Configuration & Materials
Model Name Material
SL-SB JS260 Tresor Dore Packing Machine Machine body: spherical iron; Clip: alloy steel; Touching with candy parts: stainless steel 304 and PU
SL-SB ZL300J Arranging and Feeding Machine Machine body: carbon steel; Touching with candy parts: PU
Special Features
  • PLC & program software for easy operation and setup
  • Auto-human touch screen with three-color warning light
  • Self-failure diagnosis with clear failure display
  • Two language display on touch screen
  • Fully automatic program-controlled with servo motors
  • Flexible color sensor settings and paper feeding self-tracking
  • Self-protection for abnormal products
  • Online product feeding status monitoring
  • Removable truckle with adjustable height
  • Large space switch power supply
Packing Machine Technical Specifications
Main Specification and Parameters
Parameter Value
Packing Speed 200-300 ppm
Chocolate Size (Diameter) 15-32mm
Total Power 3kW
Power Supply 380V 50HZ 3P
Air Supply 0.6Mpa
Qualification Rate 98%
Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 1 Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 2
Main Components
  • Servo motor for feeding paper: Japanese (Panasonic)
  • Touch screen: Taiwan (Weinview) 7.5"
  • Frequency converter: Taiwan (Delta)
  • Candy sensor: Germany (LEUZE)
  • Over size candy proximity switch: Germany (LEUZE)
  • Origin proximity switch: Germany (LEUZE)
  • Encoder: Italian (LEUZE)
  • Solid relay: Japanese (Omron)
  • Switch power supply: China
  • PLC: Chengdu (SL)
Arranging and Feeding Machine Specifications
Technical Specification Main Components
Total Power: 1 KW
Compressed Air: 0.6Mpa		 Frequency Converter: Taiwan (Delta)
Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 3 Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 4
Package and Shipping

Package Standard: Wooden case package as international trade package

Package Supply and Recovery: Supplier supplies package according to customer requirements

Shipping: FOB SHANGHAI

Component Gross Weight Dimensions (L*W*H)
Packing Machine 1600 KG 2970*1570*2250mm
Feeding Conveyor 400 KG 2570*1070*1450mm
Total 2000 KG 14 m³
Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 5 Multifunction Chocolate Egg Wrapping Machine 200pcs/Min Speed 6
Terms and Conditions

Warranty: One year warranty under standard operation

Acceptance Inspection: According to enterprise standard in supplier factory

Spare Parts Guarantee: One year (excluding loss due to incorrect operation)

Installation: Facility installation and debugging by assigned engineer at buyer's factory
