Home > Products >
Twist Packing Machine
>

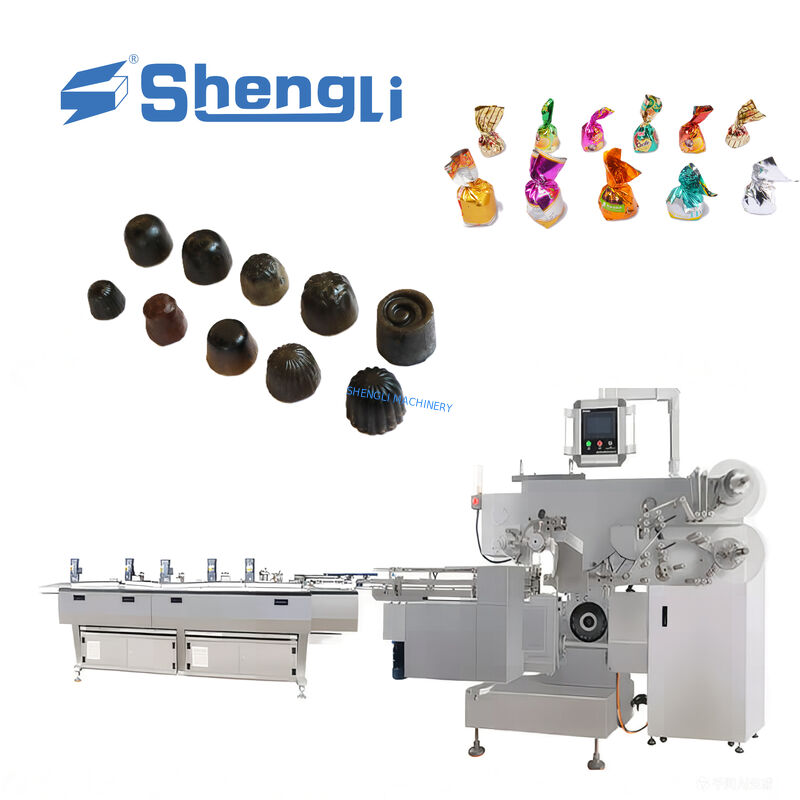

260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed
  • 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed
  • 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed
  • 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed
  • 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed

260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed

Product Details:
Place of Origin: CHINA
Brand Name: SHENGLI
Certification: CE
Document: Single Twist Machine For Ch...te.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
SHENGLI
Certification:
CE
Document:
Single Twist Machine For Ch...te.pdf
Product Name:
Automatic 260ppm High Speed PLC Control Food Grade Chocolate Top Twist Wrapping Machine
Packaging Type:
Film, Twisting Wrapping
Packaging Material:
Plastic, PET
Wrapping Speed:
260ppm
Size Of Chocolate:
Diameter 10-32mm; High: 10-30mm
Qualification Rate Of Packaging:
>=98%
Highlight:

High Light

Highlight:

Single Twist Chocolate Wrapping Machine

,

260ppm Horizontal Chocolate Wrapping Machine

,

Twist Chocolate Wrapping Machine

Trading Information
Minimum Order Quantity:
One Set
Price:
USD46000.0-USD60000.0
Packaging Details:
Export wooden cases
Delivery Time:
45-60 Days
Payment Terms:
T/T,L/C
Supply Ability:
20 Sets/Month
Product Description
Automatic 260ppm High Speed PLC Control Food Grade Chocolate Top Twist Wrapping Machine
High-speed Full Automatic Chocolate Single Top Twist Wrapping Machine designed for efficient packaging of chocolates, pralines, and pressed candies.
Main Packing Machine Specifications
Model No SL-SBDN260
Packing Speed 260ppm
Products Size Diameter (Round) 10-32mm; Height 17-30mm
6-22mm; 10-30mm
Total Power 3KW
Power Supply 380V/220V 50HZ 3P
Air Supply 0.6Mpa
Qualification Rate of Packaging >=97%
Air Displacement 0.6 m³/min
Wrapper Width 80-130mm
Wrapper Material Foil/PET/Film and so on
Arranging and Feeding Machine Technical Specifications
Total Power 1 KW
Compressed Air 0.6Mpa
Frequency Converter Taiwan (Delta)
Gross Weight - Packing Machine 1600kg
Gross Weight - Feeding Conveyor 1000kg
Dimensions - Packing Machine 2960×1560×2150mm
Dimensions - Feeding Conveyor 2360×860×1250mm
1560×860×1260mm
Product Overview
This complete machine is a fully automatic high-speed wrapping system that uses automatic control to convey and package foods such as chocolate, pressed candy, pralines, and other delicate or fragile food products.
The complete system consists of one SL-SBDN260 Top-twisting Packing Machine and one SL-SBZL500 Arranging and Feeding Machine.
260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 0 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 1 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 2
Application Range
SL-SBDN260 series automatic packing machines are primarily used for single twist style wrapping of chocolates, pralines, and pressed candies. The model uses foil for twist packing and is suitable for various product shapes and sizes, delivering excellent packaging performance.
260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 3 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 4
Product Details
260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 5 260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 6
Main Components
  • Servo motor for feeding paper - Japan (Omron)
  • Touchscreen - Japan (Omron)
  • Frequency converter - Taiwan (Delta)
  • Candy sensor - Germany (SICK)
  • Color code sensor - Germany (SICK)
  • Paper broken proximity switch - Germany (SICK)
  • Oversize candy proximity switch - Germany (SICK)
  • Origin proximity switch - Germany (SICK)
  • Encoder - Japan (Omron)
  • Solid relay - Japan (Omron)
  • Switch power supply - Japan (Omron)
  • Precision potentiometer - Japan (Omron)
  • PLC - Japan (Omron)
Key Advantages
  • PLC & program software for easy operation and setup with auto-human touch screen and three-color warning light
  • Self-failure diagnosis with clear failure display
  • Fully automatic program-controlled with servo motors for high stability and reliability
  • Flexible color sensor settings with paper feeding self-tracking and correction
  • Self-protection for abnormal products
  • Online product feeding status monitoring for minimal paper consumption
  • Removable truckle with adjustable height
  • Large space switch power supply with optional device brands
Company Introduction
Chengdu ShengLi Mechanical Equipment Co., LTD specializes in the design, development, production, and sales of food processing and packing machinery. With decades of experience, we provide automatic food processing solutions and customer services. Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004.
260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 7
Packing & Shipping
Package Standard: Wooden case package as international trade standard
Package Supply and Recovery: Supplier provides packaging according to customer requirements
Package Size and Weight: Reference specifications available
260ppm Horizontal Single Twist Chocolate Wrapping Machine Automatic High Speed 8
