300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine
  • 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine
  • 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine
  • 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine
  • 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine

300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine

Product Details:
Place of Origin: CHINA
Brand Name: SHENGLI
Certification: CE
Document: Ball Peanut Sphere Chocolat...ne.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
SHENGLI
Certification:
CE
Document:
Ball Peanut Sphere Chocolat...ne.pdf
Product Name:
300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine
Function:
Aluminum Foil Wrapping
Driven Type:
Electric
Voltage:
380V 50Hz,3-p
Key Selling Points:
High-Accuracy
Packing Speed:
300-400ppm
Highlight:

High Light

Highlight:

400ppm candy wrapping machine

,

400ppm chocolate foil wrapping machine

,

automatic candy wrapping machine

Trading Information
Minimum Order Quantity:
One Set
Price:
USD51000.0-USD60000.0
Packaging Details:
Export wooden cases
Delivery Time:
45-60 Days
Payment Terms:
T/T,L/C
Supply Ability:
20 Sets/Month
Product Description

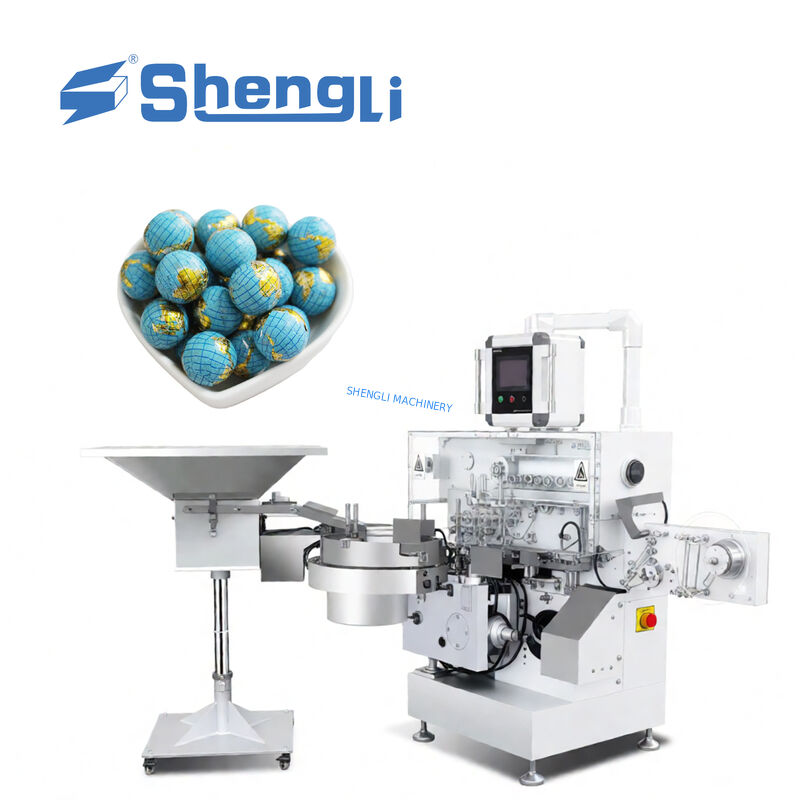

300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine
Product Overview

This fully automatic high-speed packing machine uses advanced control systems to convey and pack delicate food items like chocolate balls and other fragile products.

300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 0

The complete system consists of:

  • WS-SBQS450 Spherical Chocolate Packing Machine
  • SL-SBLD Shake Hopper
Machine Components
Model Name Material Picture
SL-SB QS450 Spherical Chocolate Packing Machine Machine body: spherical iron; Clip: alloy steel; Candy contact parts: stainless steel 304 and PU 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 1
SL-SBLD Shake Hopper Machine body: carbon steel 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 2
Special Features
  • PLC & program software for easy operation and setup
  • Auto-human touch screen with three-color warning light
  • Self-diagnosis failure system with clear display
  • Fully automatic program-controlled with servo motors for high stability
  • Flexible color sensor settings and paper feeding self-tracking
  • Self-protection for abnormal products
  • Online product feeding status monitoring for minimal paper consumption
  • Removable truckle with adjustable height
  • Large space switch power supply with customizable electrical device brands
Technical Specifications
Main Parameters
Parameter Specification
Packing Speed 300-400ppm (depending on product shape and size)
Chocolate Size (Spherical) D: 10-32 mm
Chocolate Size (Eclipse) Minor D: 5-20mm, Major D: 5-32 mm
Total Power 3.5kW
Power Supply 380V/220V 50HZ 3P (customized)
Air Supply 0.6Mpa
Packaging Qualification Rate 98%
300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 3 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 4 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 5
Wrapper Specifications
Wrapper Width 80-130mm
Wrapper Material Foil/PET/Film and similar materials
Wrapper Supply Must be sent to factory within one month after order
Air Requirements
Air Pressure 0.6MPa
Air Displacement 0.6 m³/min
Chocolate Mold
Mold Supply Must be sent to factory within one month after order
Main Components
  • Servo motor for feeding paper - Japanese (Panasonic)
  • Touchscreen - Taiwan (Weinview) 7.5"
  • Frequency converter - Taiwan (Delta)
  • Candy sensor - Germany (LEUZE)
  • Color code sensor - Germany (SICK)
  • Oversize candy proximity switch - Germany (LEUZE)
  • Origin proximity switch - Germany (LEUZE)
  • Encoder - Italian (LIKA)
  • Solid relay - Japanese (Omron)
  • Switch power supply - China
  • Precision potentiometer - Mexico (Bourns)
  • PLC - Chengdu (WS)
Company Introduction

Chengdu ShengLi Mechanical Equipment Co., LTD specializes in the design, development, production and sales of food processing and packing machinery. With decades of experience, we provide automatic food processing solutions and customer services. Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004.

300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 6 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 7
Package and Shipping
Package Standard

Wooden case package as international trade standard.

Package Supply and Recovery

Supplier provides package according to customer requirements. Recovery depends on customer preference.

Package Size and Weight
Component Gross Weight Dimensions (L*W*H)
Packing Machine 1600kg 2970×1570×2250mm
Shake Hopper 100kg 1170×1170×750mm
Total 1700kg 11m³

Delivery to customer's named place in China.

300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 8 300-400ppm Automatic High-Accuracy Chocolate Ball Packing Machine 9
Other Terms
Warranty and Conditions

One-year guarantee under standard operation conditions.

Acceptance Inspection

According to enterprise standard in supplier factory. Suggestions accepted within one month after debugging.

Spare Parts and Tools

Refer to Appendix 1 for spare parts and tools instruction.

Spare Parts Guarantee

One-year guarantee for spare parts (excluding parts lost due to incorrect operation). Three-month guarantee for parts listed in Appendix 1.

Installation and Debugging

Facility installation and debugging completed at BUYER's factory by assigned engineer from SELLER's factory (typically one person). BUYER covers all expenses including transportation, meals, accommodations, plus additional USD50 per person per day during installation and debugging.

Company Information

Chengdu ShengLi Machinery Equipment Co., LTD

Address: No.999, Eastern of Kesheng Rd, Cross-straits IT Development Zone, Wenjiang, Chengdu, China P.R.611130

Contact: Nikko Yu

Tel: 0086-028-82601208

Fax: 0086-028-82602518

Mobile/WeChat/WhatsApp: +86-18884315758

Website: www.shenglipack.com
