Chocolate Foil Wrapping Machine
>
Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine
  • Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine
  • Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine
  • Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine
  • Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine
  • Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine

Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine

Product Details:
Place of Origin: CHINA
Brand Name: SHENGLI
Certification: CE
Document: Pencil Chocolate Foil Packi...ne.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
SHENGLI
Certification:
CE
Document:
Pencil Chocolate Foil Packi...ne.pdf
Product Name:
High-Accuracy Semi-Automatic Chocolate Foil Wrapping Machine For Pencil Shape Chocolate At 150-200pics/min
Packaging Type:
Foil
Driven Type:
Mechanical
Core Components:
PLC, Bearing, Motor, Gear
Highlight:

High Light

Highlight:

Semi Auto Chocolate Wrapping Machine

,

Chocolate Wrapping Machine 150ppm

,

200ppm Chocolate Wrapper Machine

Trading Information
Minimum Order Quantity:
One Set
Price:
USD51000.0-USD60000.0
Packaging Details:
Export wooden cases
Delivery Time:
45-60 Days
Payment Terms:
T/T,L/C
Supply Ability:
20 Sets/Month
Product Description

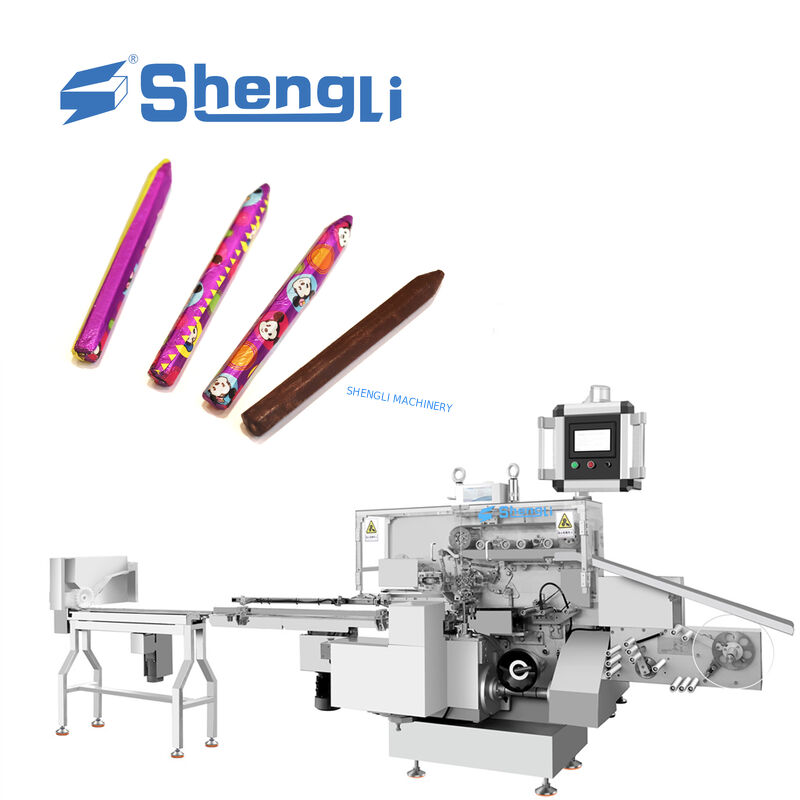

High-Accuracy Semi-Automatic Chocolate Foil Wrapping Machine for Pencil Shape Chocolate at 150-200pics/min
The SL-SBQB200 series packing machine is specifically engineered for wrapping pencil-shaped chocolates, claviform chocolates, and biscuits. This system also accommodates other products with proper hardness that may be fragile or difficult to handle manually.
Machine Overview
This complete wrapping system consists of one SL-SBQB200D Packing Machine and one automated feeding system, offering fast packaging speeds, excellent consistency, low failure rates, and extended service life.
Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine 0
Technical Specifications
Parameter Specification
Packing Speed 150-200 pieces/minute
Chocolate Size Diameter: ≤15mm, Length: ≤97mm
Total Power 4kW
Power Supply 380V 50HZ 3P
Air Supply 0.6Mpa
Wrapper Specifications
Wrapper Material Aluminum Foil
Wrapper Requirement Must be sent to our factory 30 days with order
Air System Requirements
Air Compressed 0.6MPa
Air Displacement 0.6 m³/min
Sample Requirements
Chocolate Sample or Mould Must be sent to our factory 30 days with order
Main Components
SBJS260 Packing Machine
  • Servo motor for feeding paper - Panasonic (Japan)
  • Touch screen - Weinview (Taiwan)/Omron (Japan)
  • Precision Potentiometer - Omron (Japan)
  • Rotary Encoder - Omron (Japan)
  • Material sensor - Leuze (Germany)
  • Paper Feeder Sensor - Leuze (Germany)
  • Color Mark Sensor - Leuze (Germany)
Electric Cabinet
  • PLC - Chengdu (SL)
  • Frequency Converter - Delta (Taiwan)
  • Circuit Breaker - Schneider (France)
  • Solid Relay - Omron (Japan)
  • Switch Power Supply - Omron (Japan)
SL-SBZL300J Auto Feeding Machine
  • Contact Area - PU
  • Frame - Stainless Steel
  • Motor - GPG
  • Motor Control - Delta (Taiwan)
Package and Shipping Information
Component Gross Weight Dimensions (L*W*H)
Packing Machine 1600kg 2970×1520×2200mm
Total 1600kg Total 10m³
Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine 1
Installation and Service Terms
Facility installation and debugging will be completed at the BUYER's factory by an assigned engineer (typically one person) from SELLER's factory. The BUYER is responsible for all expenses incurred once the engineer departs from China, including transportation, meals, accommodations, and additional costs during installation and debugging.
Semi Auto Chocolate Wrapping Machine 150ppm-200ppm Chocolate Wrapper Machine 2
