Chocolate Bar Packing Machine
>

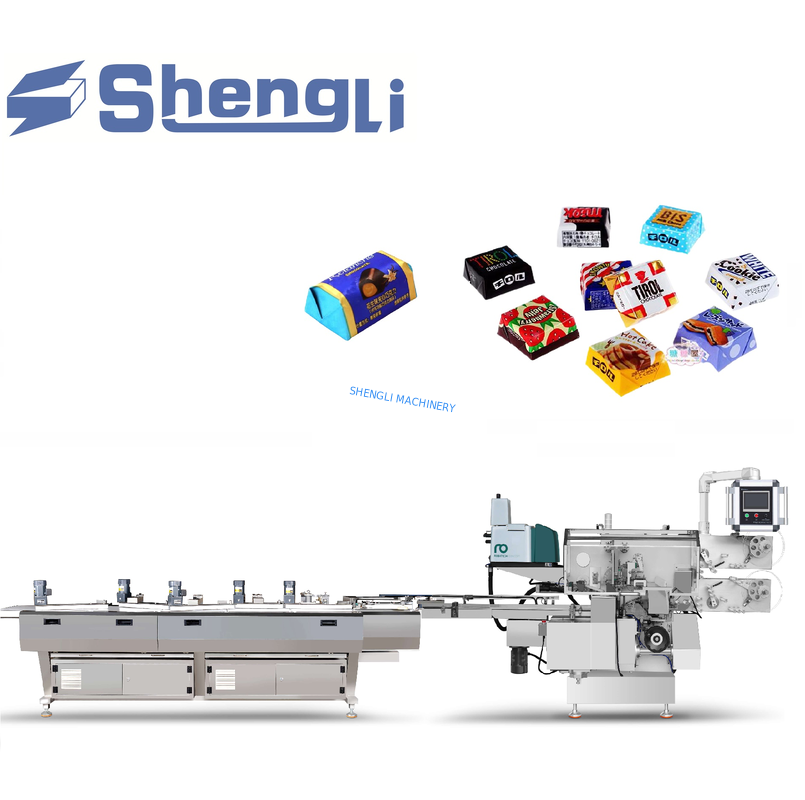

380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine
  • 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine
  • 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine
  • 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine
  • 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine
  • 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine
  • 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine

380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine

Product Details:
Place of Origin: CHINA
Brand Name: SHENGLI
Certification: CE
Document: Fold Packing Machine For Ch...te.pdf
Detail Information
Place of Origin:
CHINA
Brand Name:
SHENGLI
Certification:
CE
Document:
Fold Packing Machine For Ch...te.pdf
Function:
Wrapping, Gluing
Driven Type:
Electric
Voltage:
380V 50Hz,3-p
Advantage:
High Efficiency
Highlight:

High Light

Highlight:

380V Chocolate Fold Wrapping Machine

,

Chocolate Fold Wrapping Machine 260ppm

,

260ppm Chocolate Envelope Wrapping Machine

Trading Information
Minimum Order Quantity:
One Set
Price:
USD55000.0-USD210000.0
Packaging Details:
Export wooden cases
Delivery Time:
45-60 Days
Payment Terms:
T/T,L/C
Supply Ability:
20 Sets/Month
Product Description
Full Automatic Chocolate Bar Packing Machine with 200-260 Pics/min Speed PLC+Servo+Touch Screen Control and Stainless Steel 304 Construction
This fully automatic high-speed packing machine uses advanced control systems to efficiently convey and package delicate food products like chocolate bars and candies that require careful handling.
380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 0
Complete Machine Configuration
The system consists of one SL-SBZB450D Folded Packing Machine and one SL-SBZL500 Arranging and Feeding Machine.
Model Material Specifications Image
SL-SBZB450D Folded Packing Machine Machine body: spherical iron; Clamp: alloy steel; Product Touching Area: stainless steel 304 and PU 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 1
SL-SBZL500 Sorting Conveyor Machine body: carbon steel; Product Touching Area: PU, SUS304 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 2
Technical Specifications
Main Performance Parameters
Packing Speed 260ppm
Chocolate Size - Length 80mm
Chocolate Size - Width 45mm
Chocolate Size - Height 35mm
Total Power 8.0kW
Power Supply 380V/220V 50HZ 3P (Customized)
Air Supply 0.6Mpa
Packaging Qualification Rate 98%
Wrapper Width MAX. 130mm
Wrapper Material Foil/PET/Film and similar materials
Wrapper Roller Size Paper coin diameter: 76-90mm, roller diameter ≤300mm
Air Supply Requirements 0.6MPa, 0.6m³/min
Additional Wrapping Options
380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 3 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 4 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 5 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 6 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 7
Custom Chocolate Mold Requirements
Chocolate mold, sample, or technical drawing must be provided after order confirmation.
System Layout Diagram
380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 8
Premium Components
Fold Packing Machine Components
  • Servo motor for feeding paper - Japanese (Panasonic)
  • Touch screen - Taiwan (Weinview) 7.5"
  • Frequency converter - Taiwan (Delta)
  • Paper broken proximity switch - Germany (LEUZE)
  • Oversize candy proximity switch - Germany (LEUZE)
  • Origin proximity switch - Germany (LEUZE)
  • Encoder - Japanese (Omron)
  • Solid relay - Japanese (Omron)
  • Switch power supply - China
  • RO melting gum machine - Swiss (Robert)
Arranging and Feeding Machine Specifications
Total Power 2KW
Compressed Air 0.6Mpa
Frequency Converter Taiwan (Delta)
Manufacturer Profile
Chengdu ShengLi Machinery Equipment Co., LTD specializes in the design, development, production, and sales of food processing and packing machinery. With decades of experience, we provide comprehensive automatic food processing solutions and customer services. Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004.
380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 9 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 10
Packaging and Shipping Information
Packaging Standards
Wooden case packaging meeting international trade standards.
Packaging Supply and Recovery
Supplier provides packaging according to customer requirements; recovery depends on customer preferences.
Shipping Terms
FOB SHANGHAI / SHENZHEN / NINGBO port
Package Dimensions and Weight
Component Gross Weight Dimensions (L×W×H)
Packing Machine 1600KG 2960×1560×2150mm ×1
Feeding Conveyor 1000KG 1560×860×1250mm ×2
2360×860×1250mm ×1
Total 2600KG 16m³
380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 11 380V Chocolate Fold Wrapping Machine 260ppm Chocolate Envelope Wrapping Machine 12
Service Terms and Conditions
Warranty Coverage
One-year guarantee under standard operating conditions.
Acceptance Inspection
Conducted according to enterprise standards at supplier factories. Any suggestions must be communicated within one month after debugging.
Spare Parts Guarantee
One-year spare parts guarantee, excluding parts damaged due to incorrect operation.
Installation and Debugging
Facility installation and debugging will be completed at BUYER's factory by an assigned engineer (typically one person) from SELLER's factory. BUYER is responsible for all expenses incurred once the engineer departs from China, including transportation, meals, accommodations, plus an additional USD100 per person per day during installation and debugging.
